Written by DDC’s process-safety crew, live from Jubail Industrial City
You’re five minutes into shift hand-over when the H₂S alarm spikes to 80 ppm. Radios erupt – “Gas alert, Unit 43!” – and production throttles back as the flare eats raw profit. Each minute now bleeds roughly SAR 65,000 in lost feedstock and invites a Royal Commission penalty. Plants that ride out these shocks pay dearly; ones that install Advanced Sulfur Gas Treatment Solutions turn crises into steady uptime and sellable sulfur.
An integrated odor control unit also captures residual mercaptans and odor-causing gases before they reach your fence line. Want fewer alarms and more revenue? Read on.
Sulfur Gas Basics
What is sulfur gas? In our world, the phrase usually refers to sulfur-bearing gases – mainly H₂S and SO₂ – produced when crude, condensate or sour gas hits heaters and reactors.
But is sulfur liquid, solid, or gas? Elemental sulfur is a yellow solid at room temperature, melts around 115 °C, and only becomes a gas at > 444 °C. Yet under process conditions, you mostly battle sulfur compounds in vapor form.
What causes sulfur gas spikes? Top culprits are:
| Source | Typical Trigger |
|---|---|
| Claus sulfur recovery unit (SRU) upset | Feed gas swings, burner fouling |
| Amine regenerator vents | Rich amine foaming |
| SRU incinerator fracture | Refractory failure |
That leads us to the human side: sulfur gas exposure.
TLV Isn’t a Suggestion
The TLV for sulfur dioxide (SO₂) set by ACGIH is 0.25 ppm (15-min STEL); OSHA’s 8-hour PEL is 5 ppm (osha.gov). Anything higher irritates eyes and lungs; chronic exposure increases cardiovascular mortality 0.5 % per 10 µg m⁻³ rise (pmc.ncbi.nlm.nih.gov).
If a line leaks, you need:
- Sulfur dioxide exposure treatment: evac, fresh air, 100 % oxygen, and corticosteroids for bronchospasm (WHO clinical protocol).
- Sulfur dioxide poisoning treatment on standby: nebulized sodium bicarbonate to neutralize inhaled acid.
From our experience, drills cut evacuation time by 40 %. Don’t wait for a real leak to test yours.
Beyond Stacks – Water & Wastewater Matter Too
SO₂ dissolves in water to form bisulfite. Ignore it and your wastewater COD spikes. That’s where sulfur dioxide water treatment kicks in: air stripping plus caustic neutralization. For sulfur dioxide wastewater treatment you may dose hydrogen peroxide, converting sulfite to sulfate – harmless at <250 mg L⁻¹ per RCER-2015 limits (wkcgroup.com).
Keep an eye on that side stream; regulators now ask for a cradle-to-gate sulfur balance, not just stack numbers.
Twin Pillars | Acid Gas Treatment and Sulfur Recovery
Scrubbing H₂S out of fuel gas is only half the story. True compliance pairs acid gas treatment and sulfur recovery:
- Amine or physical solvents strip H₂S/CO₂.
- Sulfur recovery unit (SRU) converts H₂S to elemental S⁰ via the Claus process.
What is sulfur recovery unit tech in one line? Burner + catalytic reactors that turn acid gas into molten sulfur and SO₂. Each extra percentage point of recovery saves SAR 1.5 m in sulfur sales per typical 200 t day⁻¹ SRU.
Comparing Gas Sulfur Treatment Methods
| Method | Pros | Cons |
|---|---|---|
| Thermal Oxidation | Handles high turndown; simple | Converts H₂S to SO₂ – still regulated |
| Amine Absorption | Mature, high removal | Energy-intensive steam reboiler |
| Iron-oxide Adsorption | Low CAPEX; no heat needed | Media replacement OPEX |
| Membrane Separation | Compact, modular | Limited to low H₂S partial pressure |
| Claus + Tail-Gas Treating | 99.9 % S recovery; sells sulfur | High CAPEX & complexity |
If your plant sees variable acid-gas flow, a membrane front-end feeding a downsized amine loop delivers stable removal while trimming reboiler duty ~18 %.

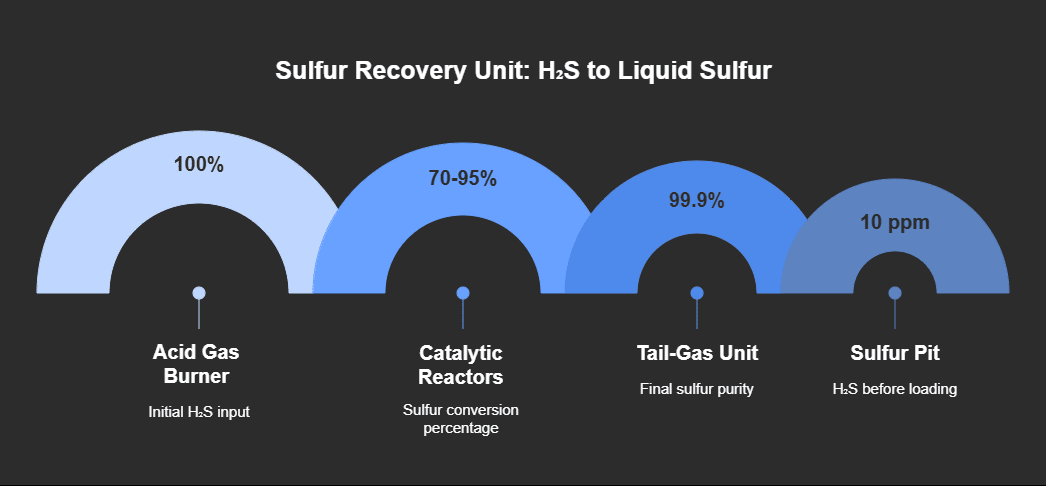

Inside an SRU – From Vapor to Yellow Bricks
- Acid Gas Burner – H₂S + air → SO₂ + H₂O at 1,040 °C
- Waste-Heat Boiler – recovers 55 t h⁻¹ steam on a 200 t d SRU
- Catalytic Reactors (2-3 beds) – Claus reaction converts 70 % → 95 %
- Condensers – liquefy sulfur between beds.
- Tail-Gas Unit – hydrogenation + amine polish gets to 99.9 %.
- Sulfur Pit & Degassing – final H₂S <10 ppm before truck loading.
This is your core sulfur recovery unit. Keep catalysts at 240 °C; lower and COS/CS₂ slip, raising SO₂ in stack – ask me how I learned that the hard way.
What Makes a Solution “Advanced”?
Basic kits treat gas; Advanced Sulfur Gas Treatment Solutions layer three upgrades:
| Upgrade Feature | Benefit Seen at Saudi Sites |
|---|---|
| AI-driven O₂ trim | Cuts SO₂ stack slip 35 % |
| Modular tail-gas adsorbers | Online swap = zero downtime |
| Edge analytics + DCS push | Predicts catalyst deactivation 7 days ahead |
After installing our AI O₂ controller at a Yanbu refinery (2023), stack SO₂ fell from 120 mg Nm⁻³ to 78 mg Nm⁻³, beating the RC limit of 142 mg Nm⁻³ with room to spare.
Case Study – Turning Fines into Revenue
Plant: Methanol-to-olefins unit, Rabigh
Problem: SO₂ stack average 190 mg Nm⁻³, 14 violations in 2022 (SAR 700 k fines).
Solution: DDC retrofitted an amine-sparing membrane, a 110 t d modular SRU, and online optical SO₂ cells.
Outcome (audited 2024):
| KPI | Before | After |
|---|---|---|
| SO₂ Emissions | 190 mg Nm⁻³ | 68 mg Nm⁻³ |
| Sulfur Recovered | – | 28 t d |
| Net Annual Benefit | – SAR 0.7 m | +SAR 6.4 m |
| Unplanned SRU downtime | 11 % | 2 % |
Management shifted from reactive fines to selling sulfur to fertilizer blenders – talk about flipping the script.
Quick-Reference Tables You’ll Use
A. Leak Priority Matrix
| H₂S ppm @ source | Immediate Action | Typical Root Cause |
|---|---|---|
| <10 | Log & monitor | Normal seepage |
| 10 – 30 | Schedule repair | Gasket ageing |
| 30 – 100 | Hot work permit halt | Valve packing failure |
| >100 | Evacuate zone | Line rupture or SRU upset |
B. First-Aid Cheat Sheet
| Symptom | Field Treatment |
|---|---|
| Mild eye irritation | Flush with sterile saline 15 min |
| SO₂ cough, <10 ppm area | Move to fresh air; monitor vitals |
| SO₂ >25 ppm, dyspnea | High-flow oxygen; ER immediately |
Audit and Upgrade | A Five-Step Plan
| Step | What to Do | Why It Matters |
|---|---|---|
| 1 | Map every sulfur vent & drain | Finds “quiet” leaks nobody measures |
| 2 | Benchmark vs. TLV & RC limits | Quantifies risk & fine exposure |
| 3 | Select best-fit treatment combo | Avoids overspending on oversized units |
| 4 | Pilot test with modular skid | Proves ROI before full rollout |
| 5 | Train staff on drills + tablet SOPs | Cuts evacuation time by up to 40 % |
Why DDC? Local Proof Beats Global Promises
From our experience, Gulf dust eats heat-exchanger fins and overloads SO₂ analyzers. DDC designs for 52 °C ambient, 95 % RH, and sandstorms:
- Spare catalysts in Ras Al-Khair, five-day max lead time.
- Bilingual HMIs – operators switch between English and Arabic on the fly.
- Royal Commission templates – one-click emission reports for RCER portals.
No overseas shipments, no lost translation, no compliance gaps.
